Fonechs CAT 6A Keystone Module, Shielded, Toolfree

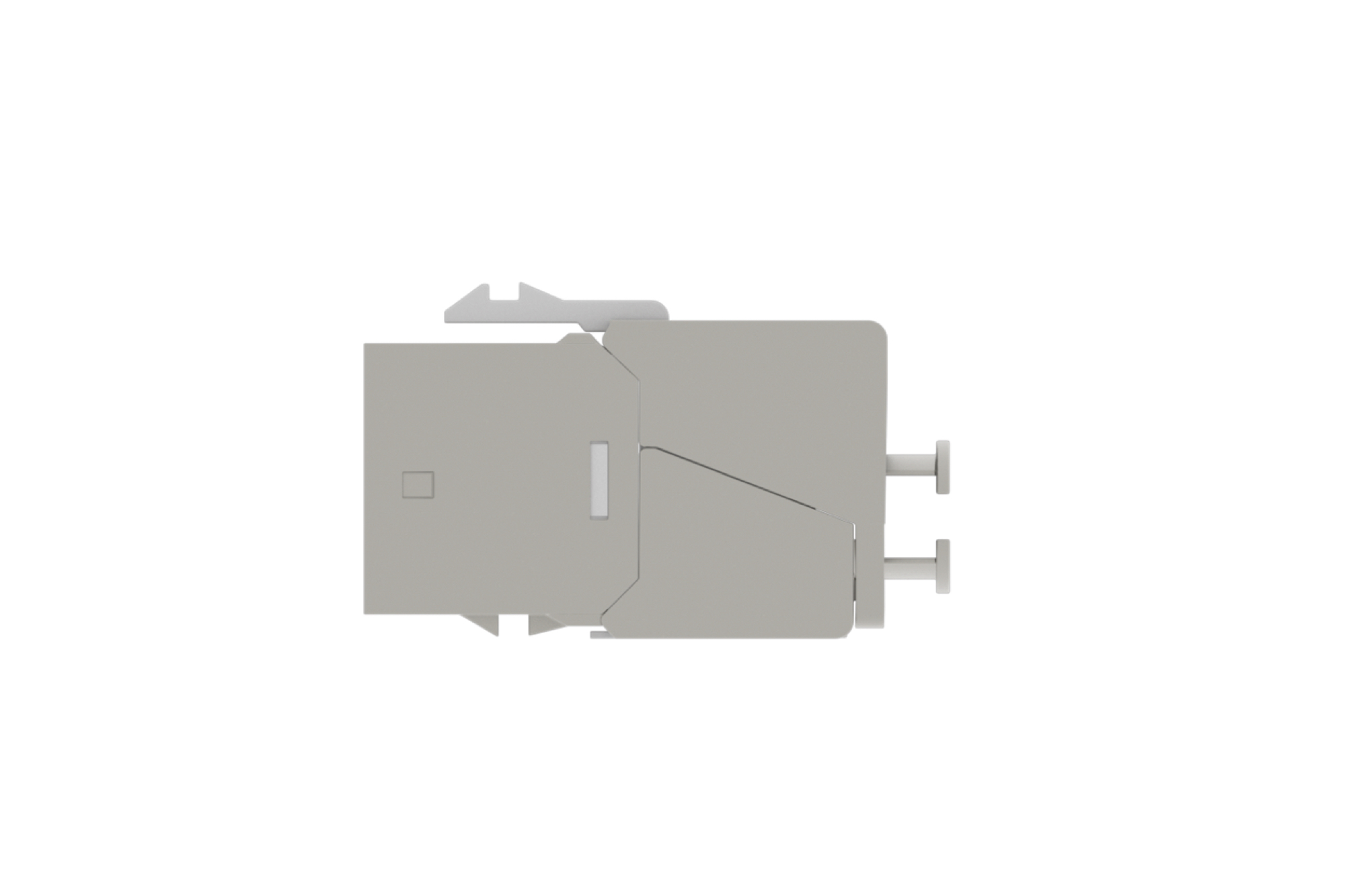

Fonechs CAT 6A Keystone Module, Shielded, Toolfree - Image 2

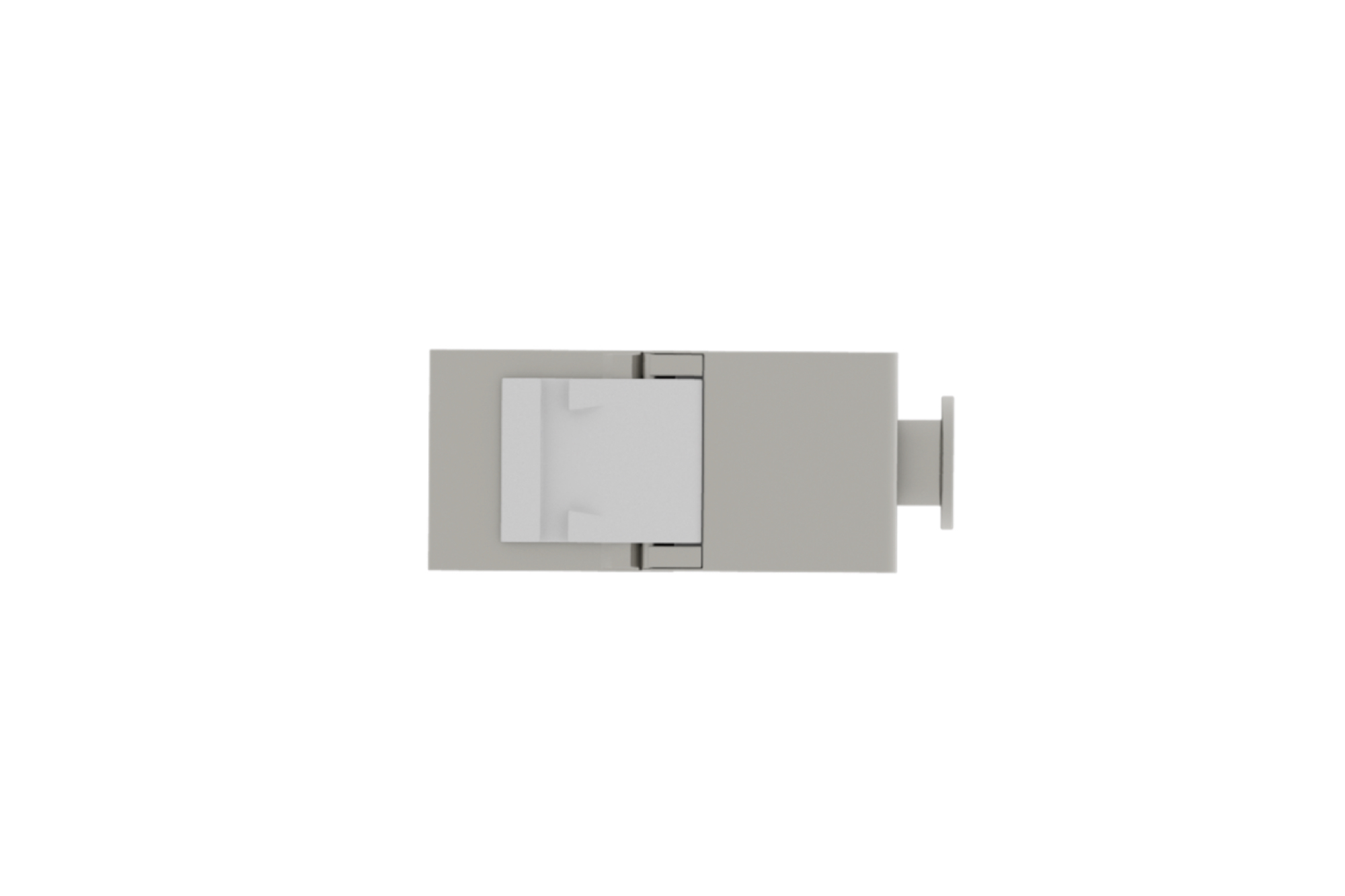

Fonechs CAT 6A Keystone Module, Shielded, Toolfree - Image 3

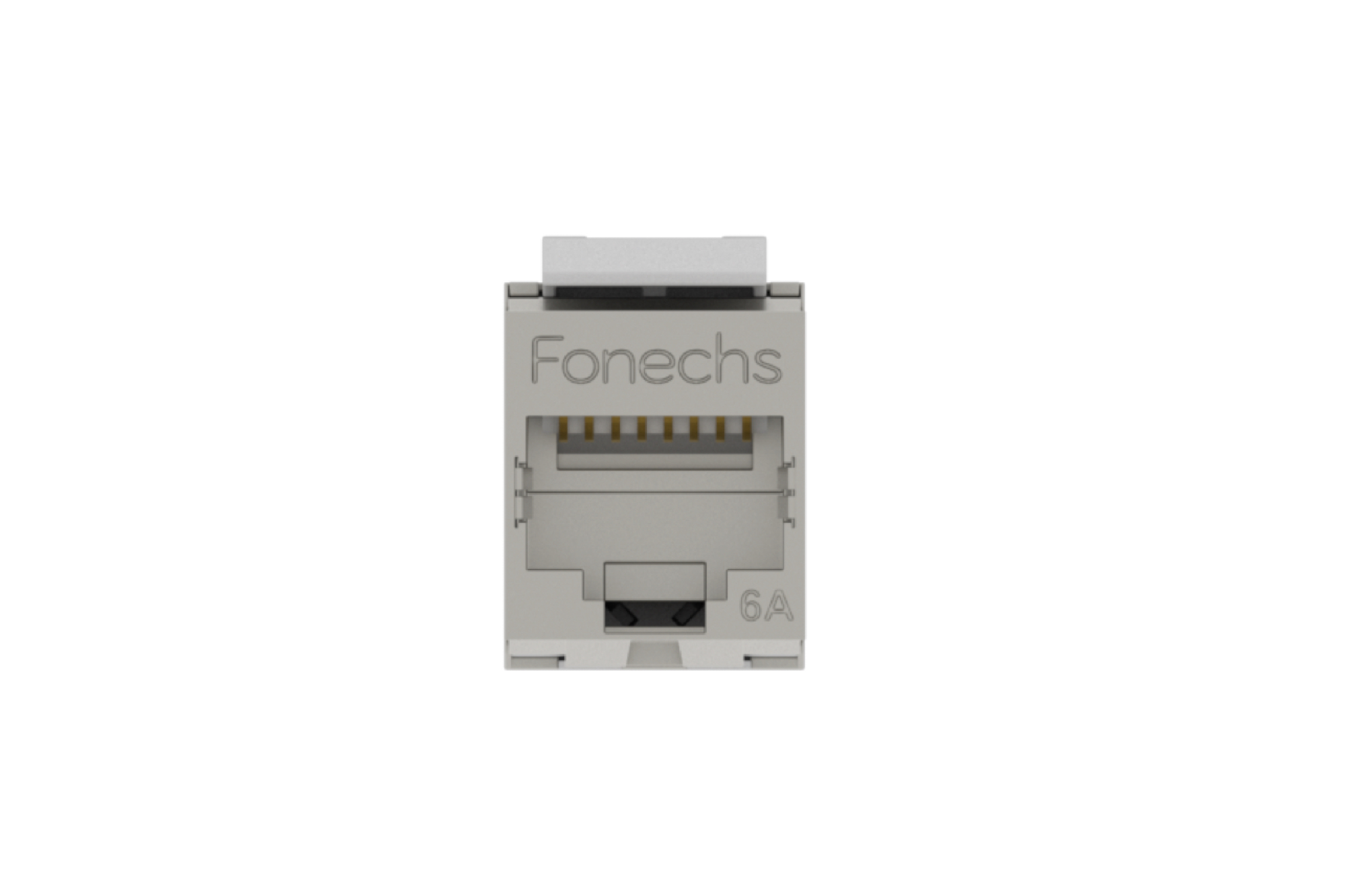

Fonechs CAT 6A Keystone Module, Shielded, Toolfree - Image 4
Fonechs CAT 6A Keystone Module, Shielded, Toolfree - Image 5

Fonechs CAT 6A Keystone Module, Shielded, Toolfree

CAT 6A Keystone Jack, shielded, tool free connection

Quick and safe wire terminations without any special tool

  • 360° shield contact
  • Suitable for field installation (tool free assembly)
  • Multi-design – suitable for distribution panel and junction box mounting
  • Cat. 6A with LSA insulation-displacement connector
  • Dust protection cap for RJ45 jack
  • GHMT certified
  • Supported PoE-Standards: IEEE 802.3 af/at/bt (PoE, PoE+ & 4PPoE)
Print view

Description

CAT 6A Keystone Jack, shielded, tool free connection

Technical details

  • Category 6A 10GBase-T, 500 MHz
  • ISO/IEC 11801 3rd Edition, EN 50173-1
  • Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)
  • Suitable for modular patch panel and modular wall outlet installation.
  • RJ45-Jack, 8P8C
  • Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B
  • Cable grip and cable fixation using intelligent cable manager
  • Tool-free mounting connection
  • 360° shield contact
  • Case material: Zinc die-cast – nickel-plated
  • Contact material: Phosphor bronze
  • Contact coating: Nickel, gold-plated 0.5 µ
  • Insertion force: Max. 30N (as per IEC 60603-7-51)
  • Holding force: 7.7 kg between jack and plug
  • Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
  • Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
  • Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
  • Tested with AWG 22/1 solid installation cable
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
  • Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B

Downloads and Certificates

Certificate

Logistics

Number
(pcs)		 Weight
(kg)		 Depth
(cm)		 Width
(cm)		 Height
(cm)		 cm³
Packaging Unit Carton 500 8,40 21,00 32,00 50,00 33.600,00
Packaging Unit Inside 50 0,70 6,40 35,00 35,00 7.840,00
Packaging Unit Single 1 0,07 1,70 21,00 11,50 410,55
Customs tariff number: 8544429090

Customers who bought this product also bought

Fonechs Cat.7 S/FTP LSZH cable, 500m, Dca

Description

The Fonechs Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values

Technical details

  • Physical properties:
  • Conductor: Bare copper wire, AWG 23/1
  • System(s) of assessment and verification of constancy of performance: System 3
  • Insulation: SFS-PE (foamed polyethylene jacket)
  • Total number of insulated conductors: 8, twisted into 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
  • Overall shielding: copper braiding
  • Outer sheath: Dca-s2 d1 a1 acc. to EN 50575; LSZH
  • Color: Orange (RAL 2003)
  • Mechanical properties:
  • Strain relief: 135N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +60 °C
  • Operating temperature range: -20 °C to +50 °C
  • Installation temperature range: 0 °C to +50 °C
  • Electrical properties:
  • Impedance: 100±15 Ohm @ 4 – 1000 MHz; 100±25 OHM @ 100-600 MHz
  • Capacitance: 45pF/m nom. at 1KHz
  • Capacitance: 40 pF/m nominal @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
  • Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
  • Operating voltage: 72 Vdc max.
  • Coupling attenuation: CA-Type 1b
  • Phase delay: 450 nS/100 m max.
  • Time delay: 10 nS/100 m max.
  • Separation class: “d” according to EN 50174-2
  • NVP: 79%
  • Flame spread: EN EN 60332-1-2 (LSOH-PVC)
  • Halogen-free, corrosivity: EN 60754-1/2 (LSOH
  • Smoke density EN 61034-2
  • Assortment: Twisted Pair Installation Cables
  • Category: CAT 7
  • Shielding: S-FTP, pairs in metal foil and braid shielding
  • CPR: Dca
  • Length: 500 m
  • Color: Orange
  • Jacket: LSOH
  • Structure: 4 x 2 AWG 23/1, solid twisted pair

Downloads and Certificates

Certificate

Logistics

  • Number
    (pcs)    		 Weight
    (kg)    		 Depth
    (cm)    		 Width
    (cm)    		 Height
    (cm)    		 cm³
    Packaging Unit Carton 1 27,00 55,00 55,00 24,00 105.875,00
    Packaging Unit Inside 1 27,00 55,00 55,00 24,00 105.875,00
    Packaging Unit Single 1 27,00 55,00 55,00 24,00 105.875,00
    Customs tariff number: 8544492000

Fonechs Cat.6A S/FTP LSZH cable, 500m, Dca

Description

The Fonechs Cat 6A installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values

Technical details

  • Physical properties:
  • Conductor: Bare copper wire, AWG 23/1
  • System(s) of assessment and verification of constancy of performance: System 3
  • Insulation: SFS-PE (foamed polyethylene jacket)
  • Total number of insulated conductors: 8, twisted into 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
  • Overall shielding: copper braiding
  • Outer sheath: Dca-s2 d1 a1 acc. to EN 50575; LSZH
  • Color: Purple (RAL 4005)
  • Mechanical properties:
  • Strain relief: 135N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +60 °C
  • Operating temperature range: -20 °C to +50 °C
  • Installation temperature range: 0 °C to +50 °C
  • Electrical properties:
  • Impedance: 100±15 Ohm @ 4 – 1000 MHz; 100±25 OHM @ 100-600 MHz
  • Capacitance: 45pF/m nom. at 1KHz
  • Capacitance: 40 pF/m nominal @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
  • Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
  • Operating voltage: 72 Vdc max.
  • Coupling attenuation: CA-Type 1b
  • Phase delay: 450 nS/100 m max.
  • Time delay: 10 nS/100 m max.
  • Separation class: “d” according to EN 50174-2
  • NVP: 79%
  • Flame spread: EN EN 60332-1-2 (LSOH-PVC)
  • Halogen-free, corrosivity: EN 60754-1/2 (LSOH
  • Smoke density EN 61034-2
  • Assortment: Twisted Pair Installation Cables
  • Category: CAT 7
  • Shielding: S-FTP, pairs in metal foil and braid shielding
  • CPR: Dca
  • Length: 500 m
  • Color: Purple
  • Jacket: LSOH
  • Structure: 4 x 2 AWG 23/1, solid twisted pair

Downloads and Certificates

Certificate

Logistics

  • Number
    (pcs)    		 Weight
    (kg)    		 Depth
    (cm)    		 Width
    (cm)    		 Height
    (cm)    		 cm³
    Packaging Unit Carton 1 27,00 55,00 55,00 24,00 105.875,00
    Packaging Unit Inside 1 27,00 55,00 55,00 24,00 105.875,00
    Packaging Unit Single 1 27,00 55,00 55,00 24,00 105.875,00
    Customs tariff number: 8544492000

Fonechs Cat.7 S/FTP LSZH cable, 500m,Duplex,Dca

Description

The Fonechs Cat 7 installation cable is designed for use in the structured data center and the building cabling according to ISO/IEC 11801, DIN EN 50288-4-1, DIN EN 50173, IEC 61156-7, EN 50288-9-1. The cable is perfectly suitable for the transmission of both analog and digital data and also supports POE and POE+. The shielding structure is composed of single shielded pairs with a tinned copper braid, which ensures excellent shielding and electrical values

Technical details

  • Physical properties:
  • Conductor: Bare copper wire, AWG 23/1
  • System(s) of assessment and verification of constancy of performance: System 3
  • Insulation: SFS-PE (foamed polyethylene jacket)
  • Total number of insulated conductors: 8, twisted into 4 pairs
  • Color code: Blue-white, orange-white, green-white, brown-white
  • Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
  • Overall shielding: copper braiding
  • Outer sheath: Dca-s2 d1 a1 acc. to EN 50575; LSZH
  • Color: Orange (RAL 2008)
  • Mechanical properties:
  • Strain relief: 135N max.
  • Dynamic bending radius: 8x AD mm min.
  • Static bending radius: 4x AD mm min.
  • Transport and storage temperature range: -20 °C to +60 °C
  • Operating temperature range: -20 °C to +50 °C
  • Installation temperature range: 0 °C to +50 °C
  • Electrical properties:
  • Impedance: 100±15 Ohm @ 4 – 1000 MHz; 100±25 OHM @ 100-600 MHz
  • Capacitance: 45pF/m nom. at 1KHz
  • Capacitance: 40 pF/m nominal @ 1 KHz
  • Insulation resistance: 5 GOhm x km min.
  • DC resistance: 95 Ohm/km max. (2% max. unbalanced resistance)
  • Loop resistance: 190 Ohm/km max. (2% max. unbalanced resistance)
  • Operating voltage: 72 Vdc max.
  • Coupling attenuation: CA-Type 1b
  • Phase delay: 450 nS/100 m max.
  • Time delay: 10 nS/100 m max.
  • Separation class: “d” according to EN 50174-2
  • NVP: 79%
  • Flame spread: EN EN 60332-1-2 (LSOH-PVC)
  • Halogen-free, corrosivity: EN 60754-1/2 (LSOH
  • Smoke density EN 61034-2
  • Assortment: Twisted Pair Installation Cables
  • Category: CAT 7
  • Shielding: S-FTP, pairs in metal foil and braid shielding
  • CPR: Dca
  • Length: 500 m
  • Color: orange
  • Jacket: LSOH
  • Structure: Duplex, 4 x 2 AWG 23/1, solid twisted pair

Downloads and Certificates

Certificate

Logistics

  • Number
    (pcs)    		 Weight
    (kg)    		 Depth
    (cm)    		 Width
    (cm)    		 Height
    (cm)    		 cm³
    Packaging Unit Carton 1 57,00 55,00 55,00 35,00 105.875,00
    Packaging Unit Inside 1 57,00 55,00 55,00 35,00 105.875,00
    Packaging Unit Single 1 57,00 55,00 55,00 35,00 105.875,00
    Customs tariff number: 8544492000
